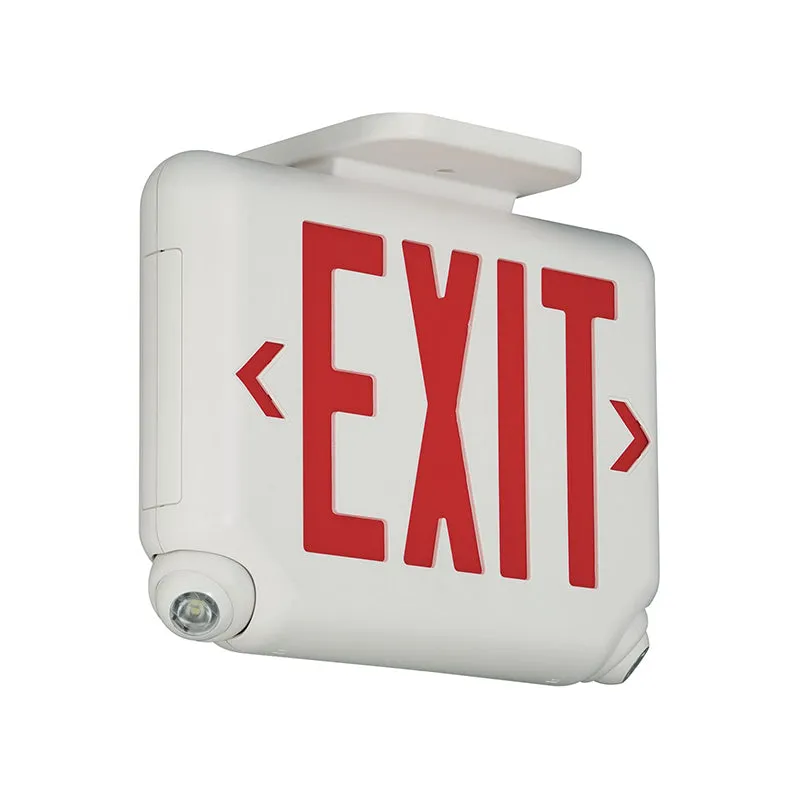

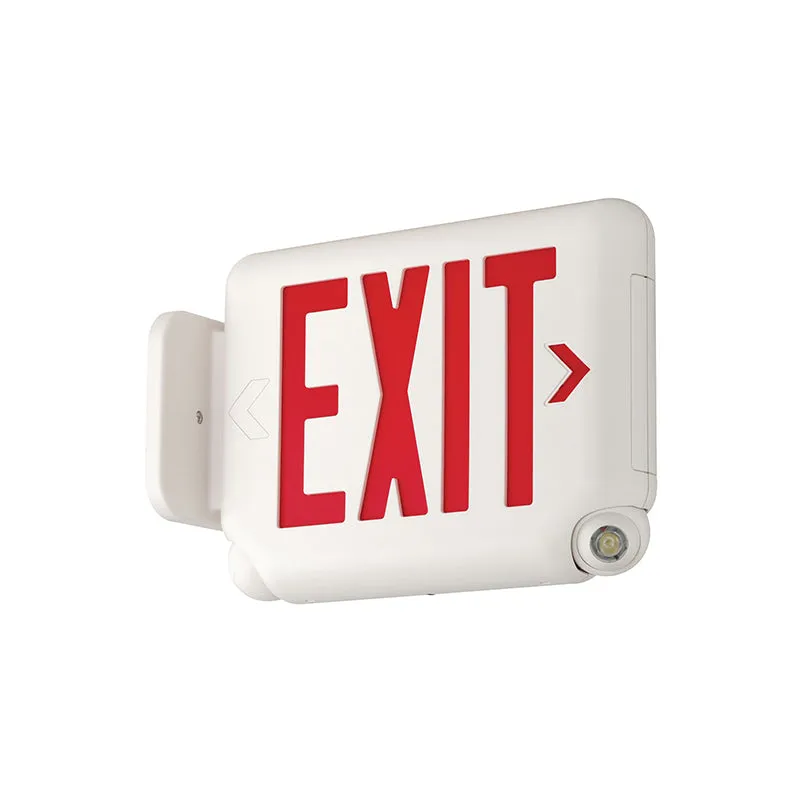

Sleek compact architectural LED combination exit and emergency lighting unit designed for fast installation and reliable service.
Features
- Universal Face
- Finish: White
- Letter Color: Red
- Voltage: 120/277VAC
- Lamp Color: Cool White
- Total Lamp Output: 88 Lumens per LED
- System Efficacy: 80lm/W

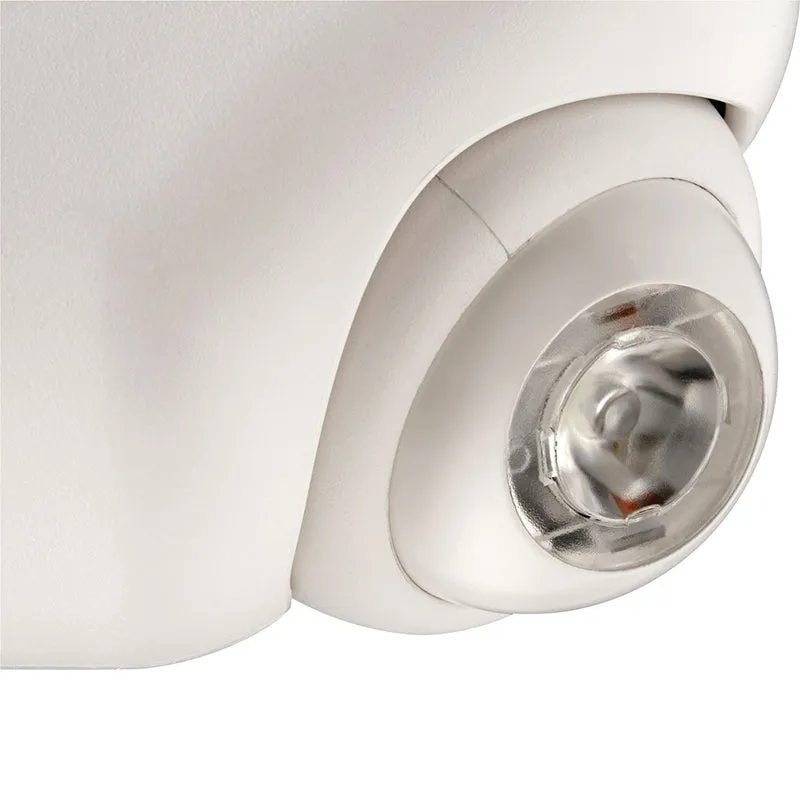

- Fully aimable, dual-racheting high output LED lamp-heads
- Can be wall mounted by use of back-plate with molded-in template, or ceiling and end mounted with the use of supplied canopy to standard 3.5" or 4" square or octagonal electrical boxes

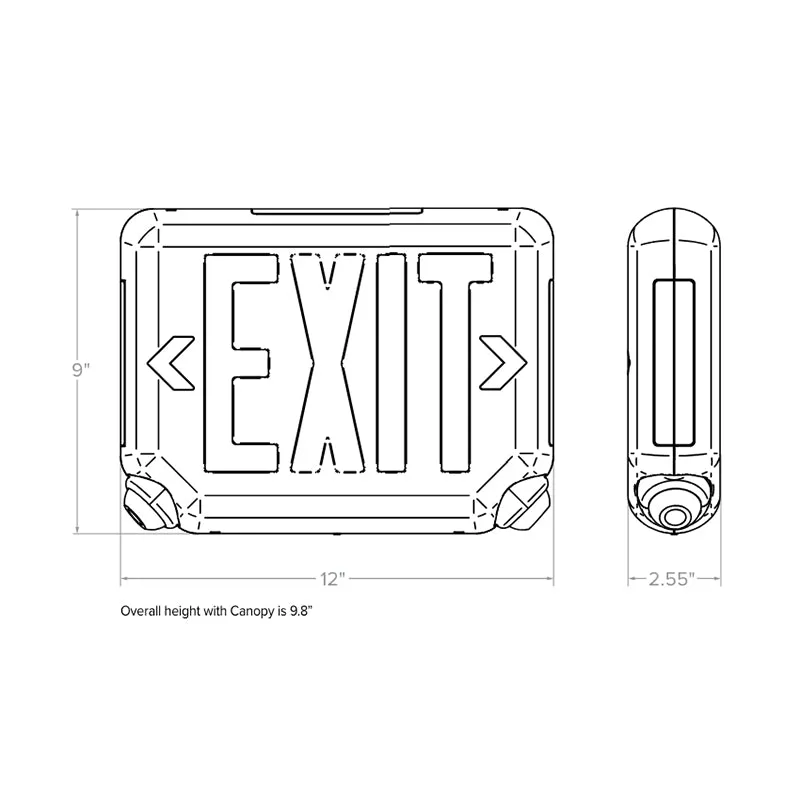

Dimension
- Width: 12"
- Height: 9"
- Depth: 2.55"
- Weight: 2 lbs
Estimated Life
- Rated Lifecycle: > 100,000hrs or 10 years
