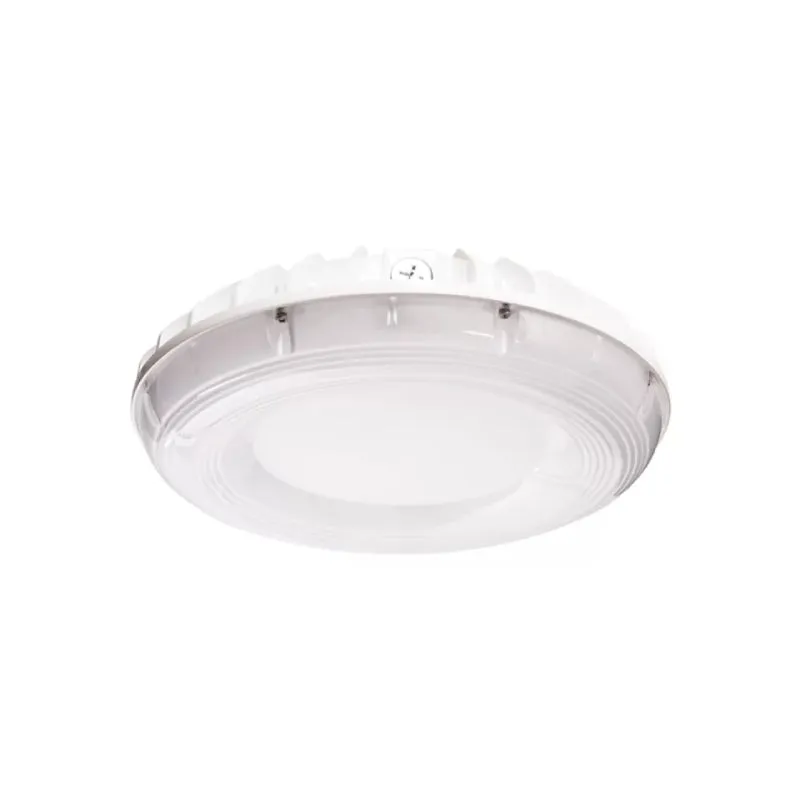

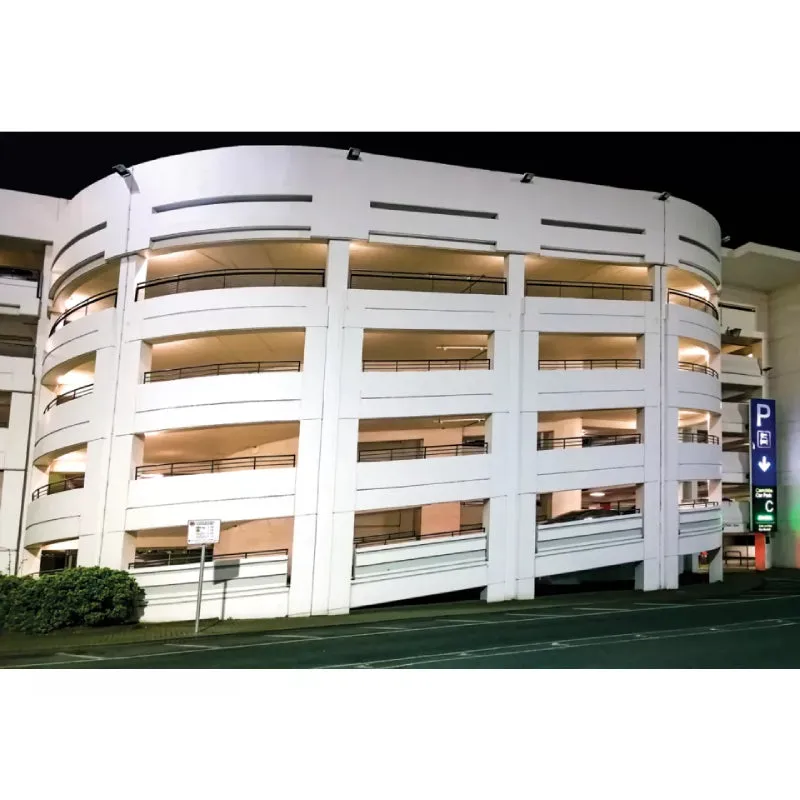

The Lumark RPGC Round Parking Garage and Canopy luminaire is an innovative, energy-efficient LED fixture. The RPGC is designed to replace traditional HID fixtures on a one-to-one basis from 150W up to 250W HID. The low profile, rugged construction, features a selectable lumen switch that allows for seamless integration into illuminating parking garages, canopy, stairwells and low-bay retail installations where high security llumination and energy savings are needed.
Features
- Finish: White
- Wattage: 31W/49W/63W
- Voltage: 120-277V
- Color Temperature: 4000K
- Lumens: 3690-7811
- CRI: 70
- Heavy-duty, low-profile die-cast aluminum housing
- Integrated universal mounting plate which mounts directly to 4" round, octagonal, and square junction boxes
- Low profile, die cast aluminum housing
- Round drop lens provides uplight to eliminate dark ceilings
- Easy installation with quick-mount bracket for hands-free wiring

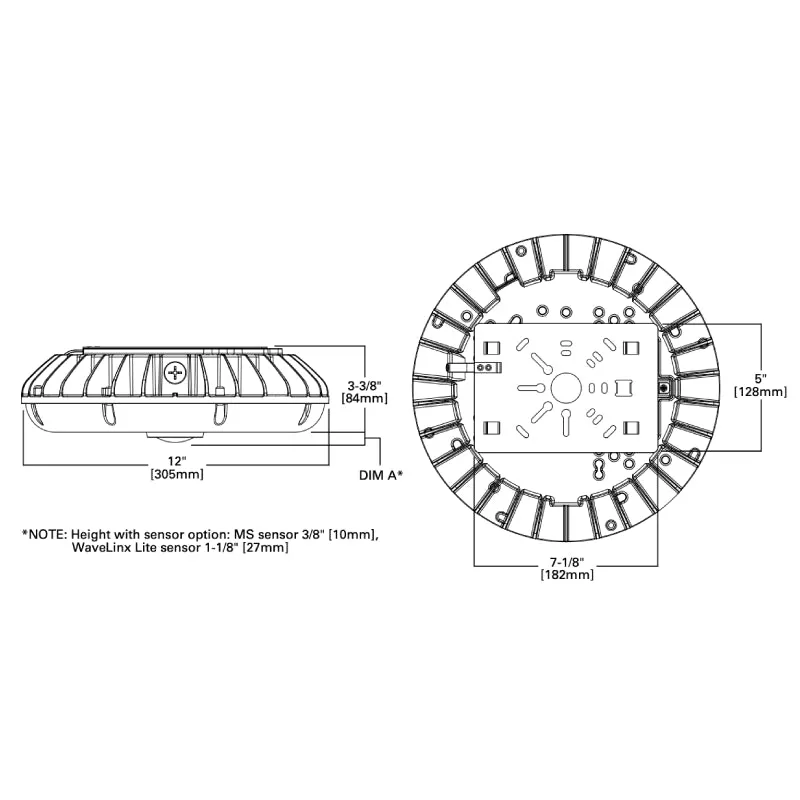

Dimensions
-
Diameter: 12"
- Height: 3.38"
- Weight: 7.6 lbs
Warranty
- 5-year limited warranty.
