ProWarm™ Tile Backer Board Pallet - BACKER-PRO are the ultimate solution for superior waterproofing and heat insulation in underfloor heating and under tile applications. These high-quality extruded polystyrene panels, reinforced with fibreglass mesh on both sides, are specifically designed to complement our under tile heating cables and mats (not suitable for underwood systems).
Key Features:
- Superior Waterproof Surface: The BACKER-PRO boards provide a durable and waterproof foundation for securely fixing wall or floor tiles, ensuring long-lasting performance and protection against moisture.
- Outstanding Heat Insulation: With their excellent thermal conductivity value of 0.033 W/mK, these insulation boards significantly enhance the efficiency of underfloor heating systems. They reduce heat-up time and minimize running costs, delivering optimal comfort and energy savings.
- Wide Range of Thickness Options: Available in 6mm, 10mm, 12.5mm, 20mm, 30mm, and 50mm thicknesses, the BACKER-PRO boards offer versatility to accommodate various installation requirements and insulation needs.
- Approved by Tile Adhesive Manufacturer Instarmac -Ultra: The BACKER-PRO boards have been rigorously tested and approved by Instarmac -Ultra, a leading tile adhesive manufacturer, ensuring compatibility and reliability.
- Excellent Sound Insulation: The boards effectively reduce impact sound, creating a quieter and more comfortable environment.
- Easy Installation: The BACKER-PRO boards can be easily cut with a knife, eliminating the need for complex tools such as a jigsaw. They can also be installed on both floors and walls, following the correct installation method.
- Dimensional Stability: The boards are waterproof and exhibit excellent dimensional stability, maintaining their integrity and performance even in wet room environments.
Enhance your underfloor heating and tiling projects with ProWarm™ BACKER-PRO insulation boards. Their exceptional waterproofing, insulation properties, and ease of installation make them the ideal choice for creating a reliable and efficient heating system with a durable tile surface.
- Available Thicknesses: 6mm, 10mm, 12.5mm, 20mm, 30mm, 50mm
- Waterproof: Yes
- Thermal Conductivity: 0.033 W/mK
- Sound Insulation: Yes
- Installation Method: Cutting with a knife, suitable adhesives for concrete or wooden subfloors

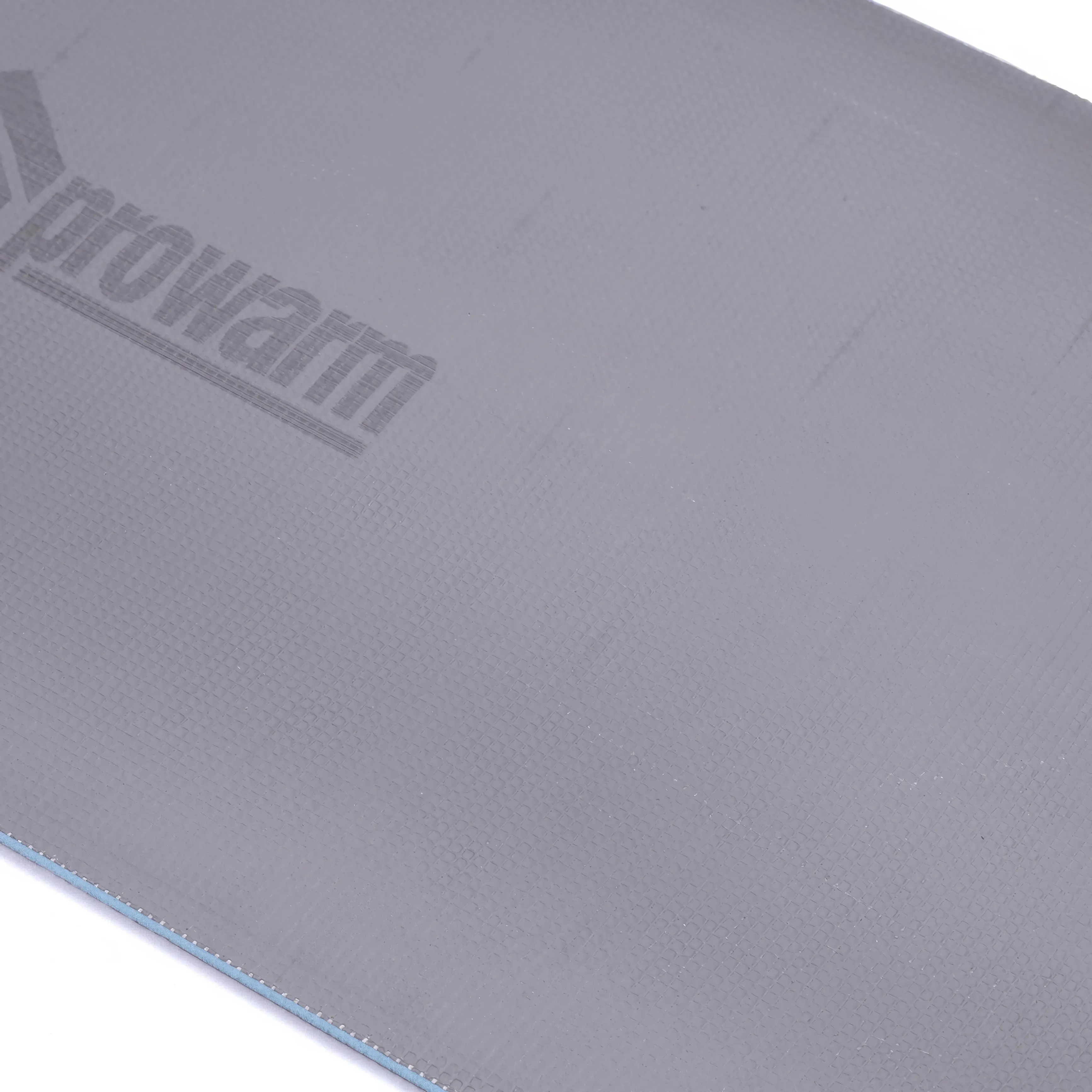

Please note: The color of the polystyrene may vary depending on the batch. The boards are not stamped with 'ProWarm', and the image is for advertising purposes only.
Specifications
| Material | Extruded Polystyrene Sheet - Polymer Modified Coating |
|---|---|
| Sheet Dimensions | 1200mm x 600mm |
| Thermal Conductivity | 0.033 W/mK |
| Capillarity | Nil |
| Compression Strength | 30 t/m2 |
| Water absorption | Less than 0.1 vol% |
| Tensile Strength | 350 KPa |
| Fire Protection Class | Bs 3837:B1 DIN |
Installation
Concrete Subfloors
When installing any type of tile backer board onto concrete subfloor we recommend using Ultra™ flexible tile adhesive, please make sure the floor is primed with a suitable primer before installation.
Wood subfloors
When installing onto wooden floors we recommend using Ultra™ flexible tile adhesive in addition with ProWarm™ insulation fixing pack or suitable screws and washers at every 300mm centres. This is approx 15 fixings per board
