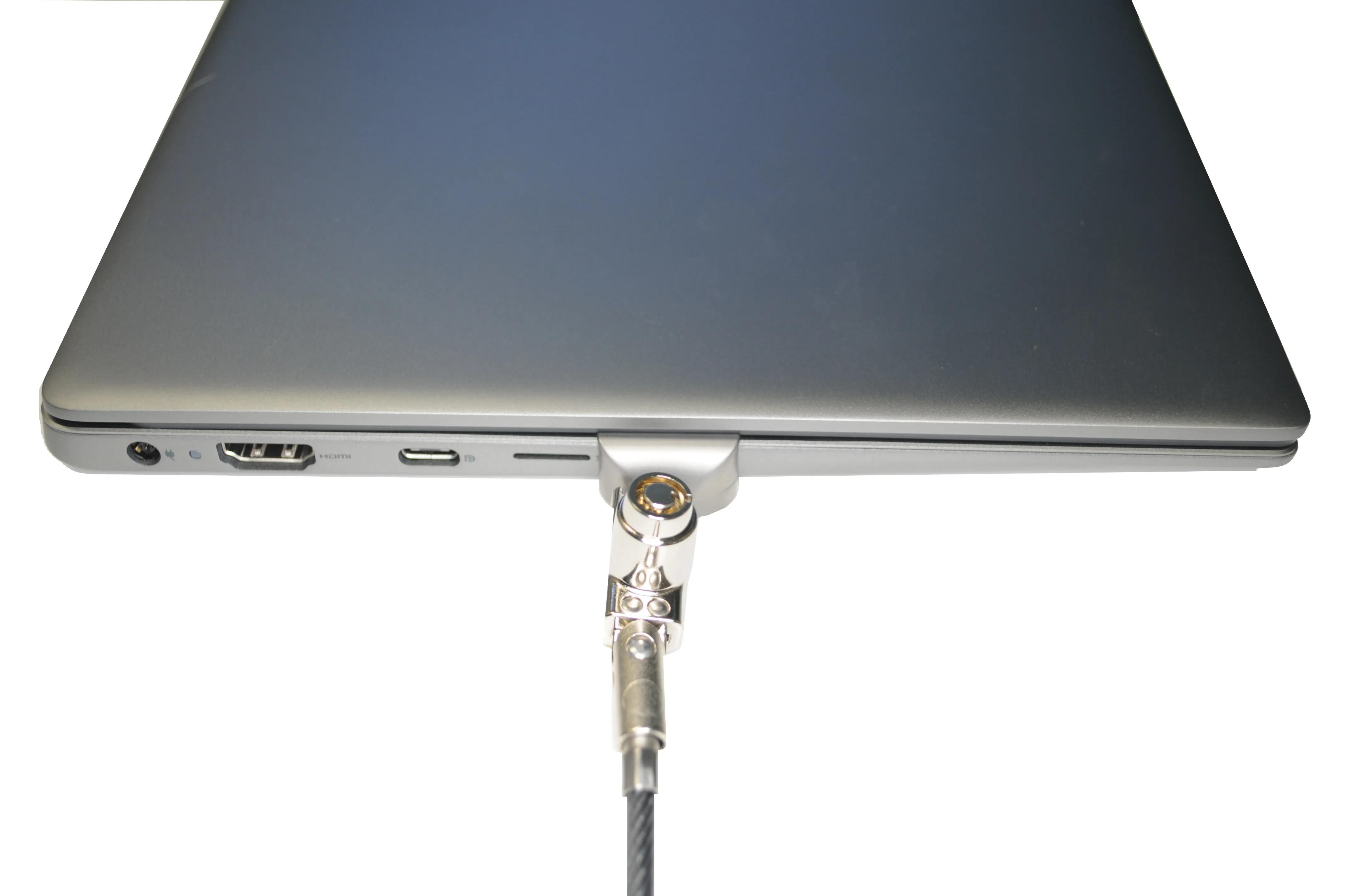

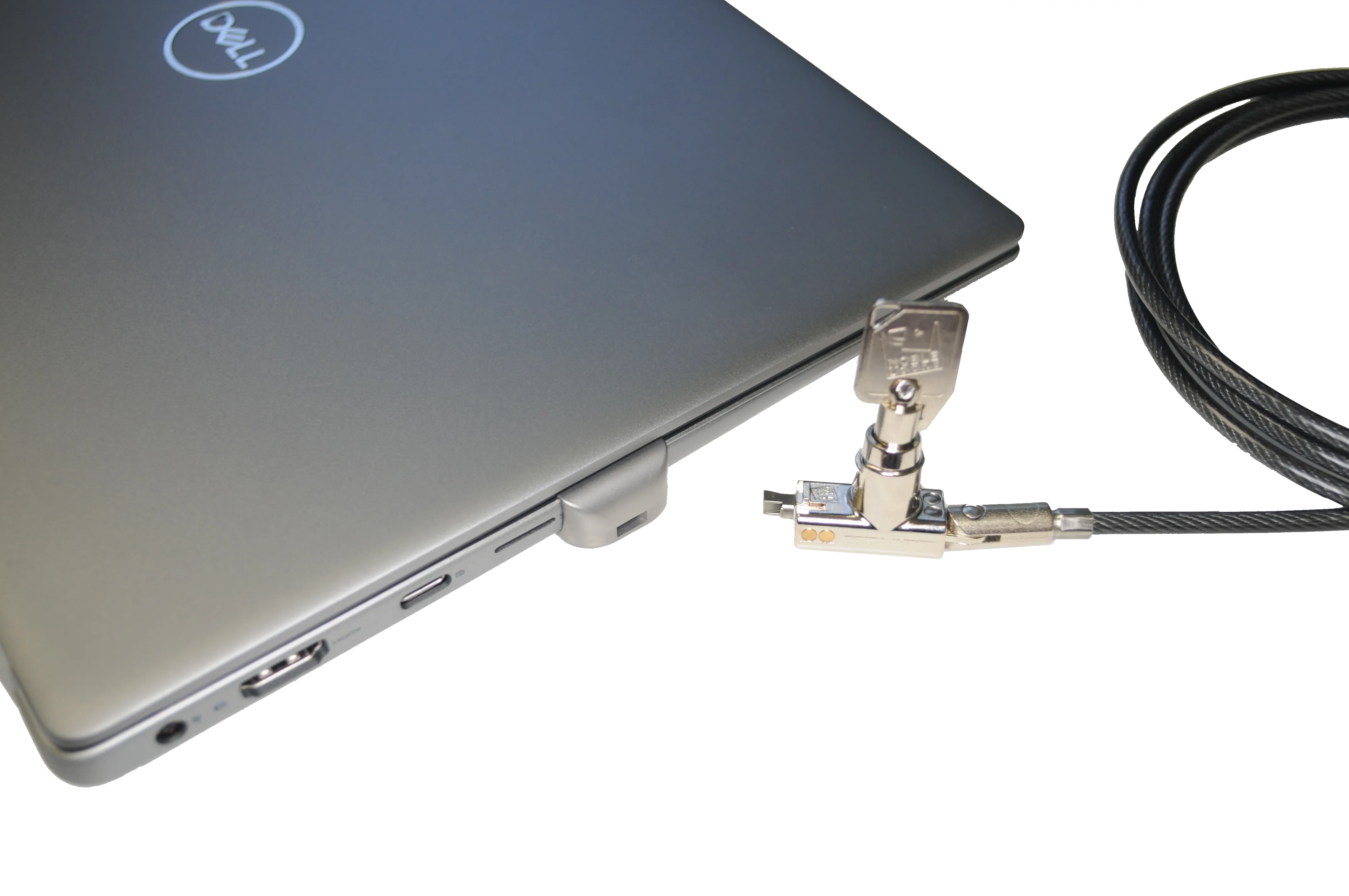

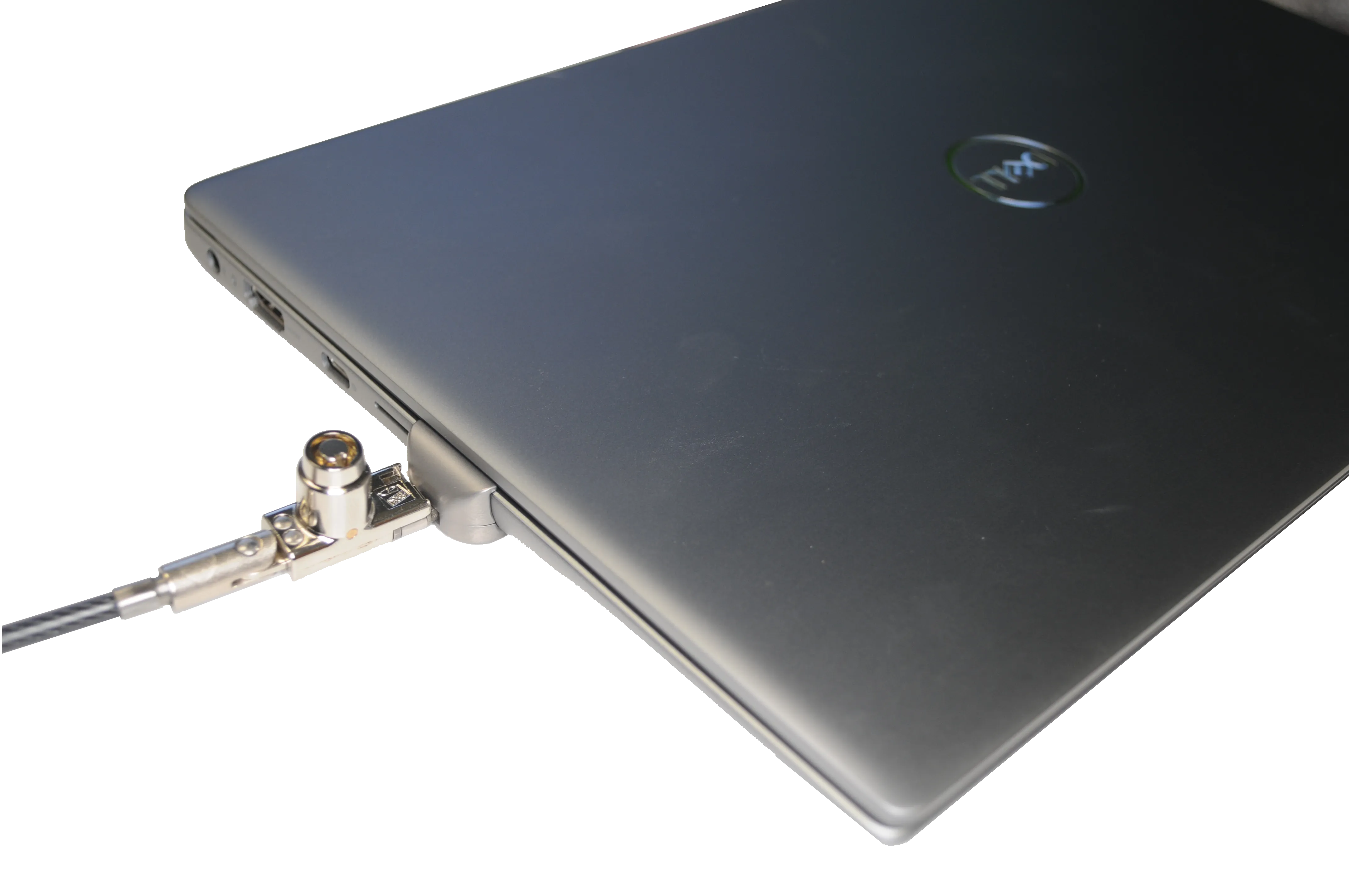

The Noble Locks TZ33 Wedge Bracket Kit is designed specifically for the Dell Latitude 3301 and is paired with the Noble Locks Ultra-Compact TZ03T  Wedge Barrel Key Lock.  This powerful after-market addition to your Dell Latitude 3301 creates a secure, compliant friendly feature to your laptop that is easy to install.  The TZ03T is the most secure physical security solution with the smallest footprint for Dell laptops. The TZ03T weighs only 98g / 3.5oz and stands at a height of 2.8mm to the middle of the lock slot. The custom bracket is designed specifically to fit your Dell Latitude 3301 making the perfect combination.

The TZ33 Wedge Bracket Kit features Noble’s TZ03T Ultra-Compact Wedge Lock patented 7mm inverted cylinder barrel key.

The rotating lock head allows for the TZ03T lock to have 360 degrees of freedom making it easier to lock and unlock. This feature also allows the lock to rotate freely while still secured within the lock slot of the bracket to help prevent theft.

This locking system also includes the patented Noble peripheral cable trap, allowing you to secure your power cables or other peripheral devices.

Noble Locks TZ33 Wedge Lock Security Bracket Kit ships with the Wedge bracket for the Dell Latitude 3301 including screws and tools for assembly, Noble's TZ03T Ultra-Compact Barrel Keyed Lock, 2 keys, 6' steel cable, peripheral cable trap and storage pouch.

NOBLE LOCK FIT PROMISE

Noble Locks guarantees that the lock you buy from noblelocks.com will fit your laptop or desktop.

If for some reason it does not fit, please fill out  with your order number and we will replace it with the lock that fits.

NOBLE WEDGE FEATURES

Noble Wedge Lock Head

The patented Noble Wedge Lock Head is designed to meet the security needs of the thinnest, most desirable laptops. The Noble Wedge Lock head slides perfectly into the purposely built wedge slot matching its name. The wedge design grips and protects your laptop like no other.

Noble Wedge Slot

The wedge security slot design was designed by the engineering experts at Noble and adopted by the industry to solve the height issue of sleeker low-profile laptops. This patented design gives the lock head additional area to grab onto and create a more powerful grip on your equipment deterring theft.

The Ultimate Barrel Key System

Noble Locks has developed and patented the 7 mm inverted cylinder key that allows the lock to be narrower and gives a sleeker profile and greater mobility. Using this tumbler lock technology, it creates a higher standard of security for individuals and IT organizations.

4 mm Hardy Steel Cable with Anchor

Braided, intertwined steel cables create a cut-resistant and theft deterrent defense. While the 4 mm thick cable allows for mobility, and is easy to stow and carry. The loop at the end of this 6 ft cable provides additional flexibility to adapt and reinforce

360 Degrees Head Rotation

Not only does the cable spin at every angle allow your laptop to lay flat at all times, but the unique Wedge lock head also rotates adding extra protection if someone tries to snap your lock.

Noble Peripheral Trap

Secure your charger and other accessories with our patented peripheral trap. Run cable of your USB Type C, USB & HDMI accessory cables through the trap before inserting lock into the slot to create a secure environment for all of your technology.

Assembly

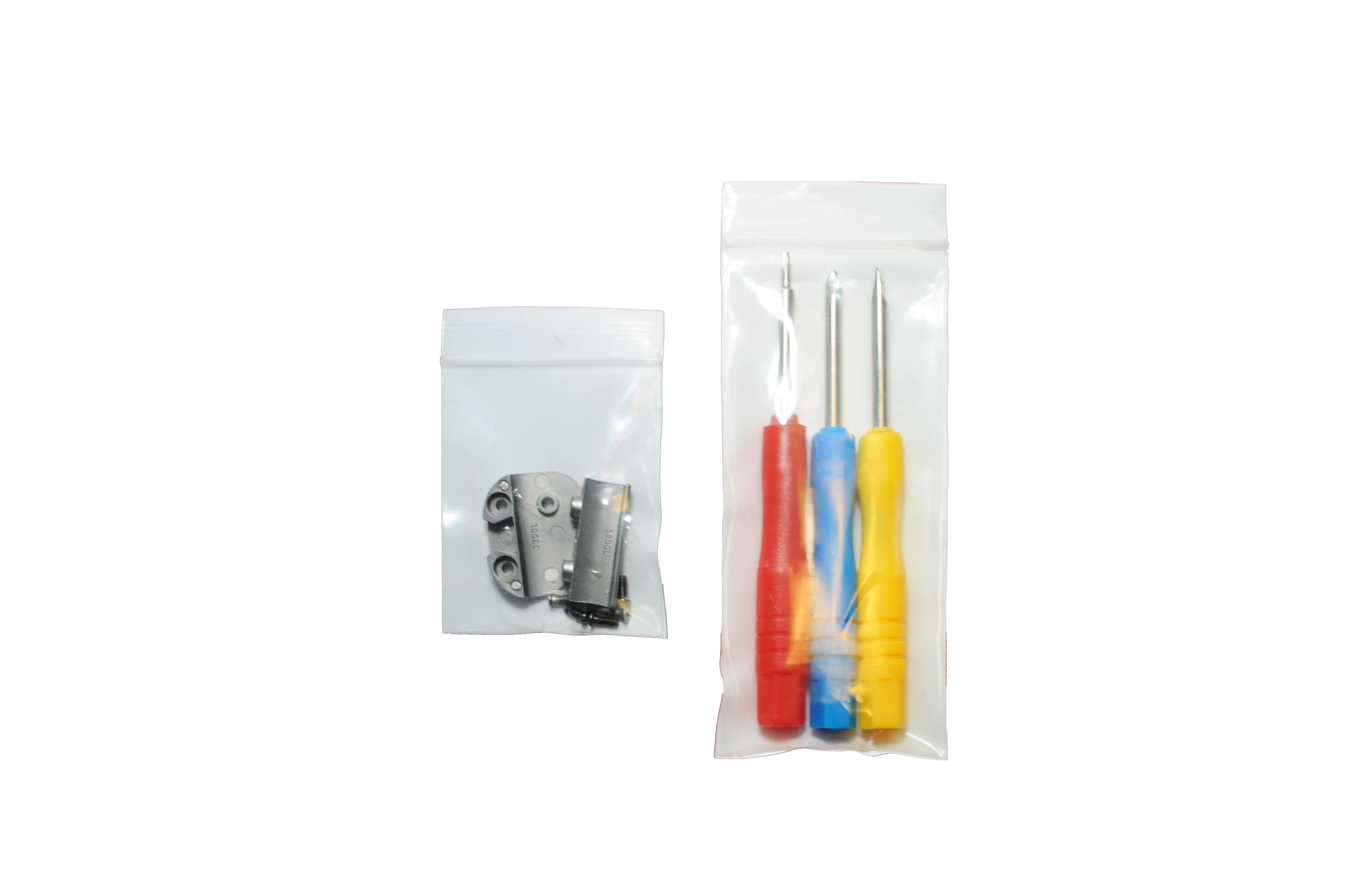

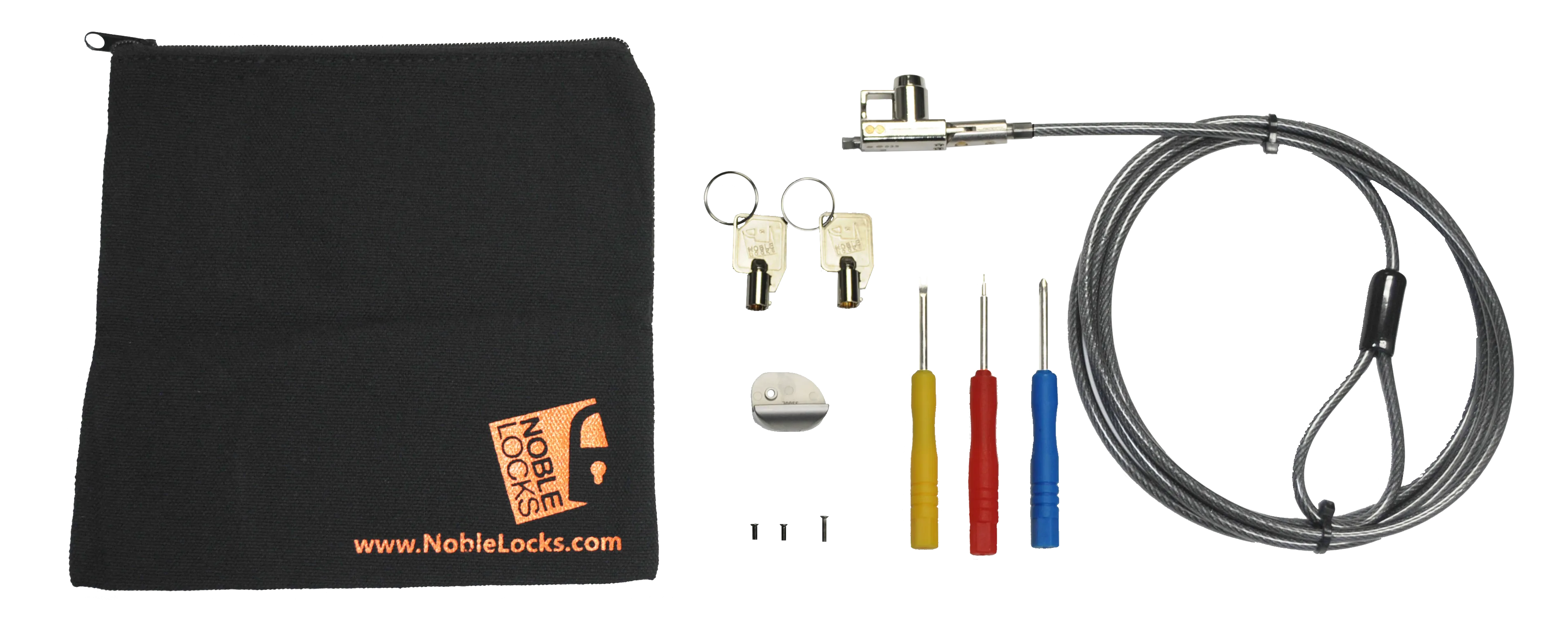

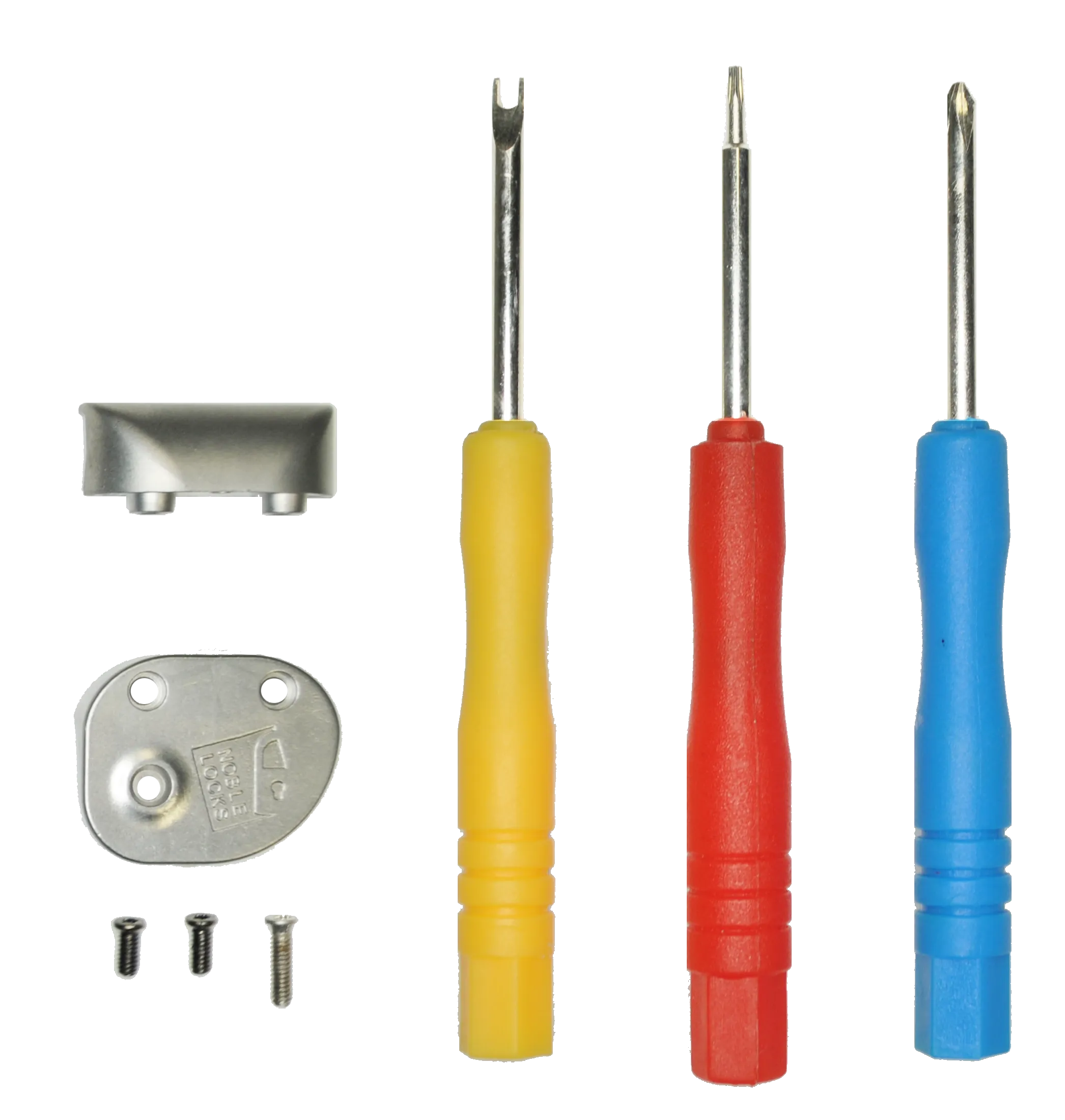

What's Inside the Kit

The TZ33 Noble Wedge Kit ships with the following:

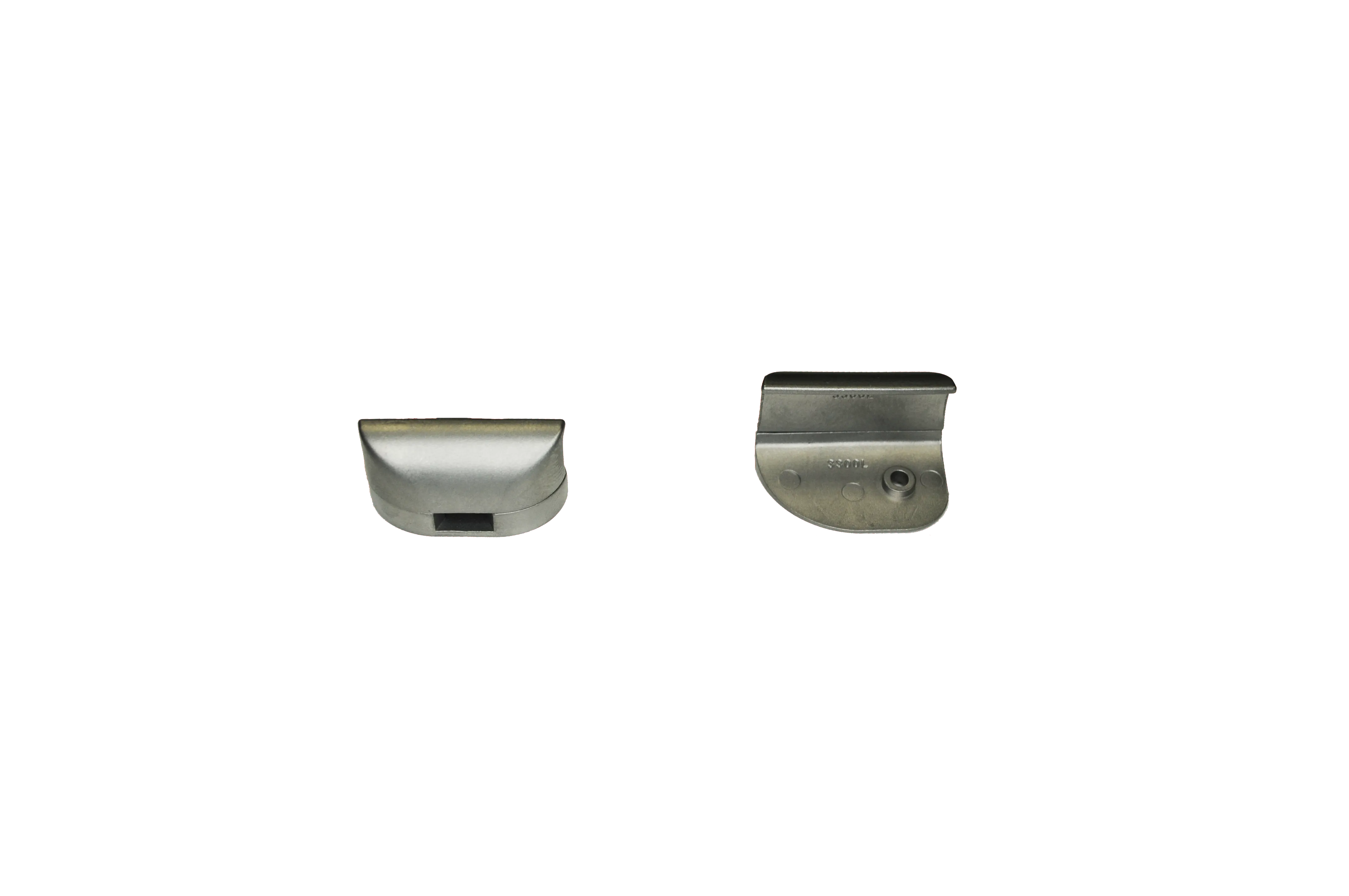

• Wedge Bracket
• Screws for the bracket (extras included)
• Two screwdrivers
• One screw fork
• TZ03T Ultra-Compact Barrel Key Lock with 6' Steel Cable
• 2 Keys
• Peripheral Trap
• Carrying Case

Step 1

Remove the left-side middle screw from the back of the computer using the provided screwdriver and screw fork to unscrew and lift out the screw.

Step 2

Place the bottom portion of the bracket and secure it to the computer using the provided longer screw in the existing hole. Do not overtighten.

Step 3

Attach the top portion of the bracket with the provided shorter screws.

Step 4

That's it. Now you can lock up your computer.

Tech Specs

LOCK

BRACKET

The Noble Wedge Lock is tested in a 5-way pull test.
